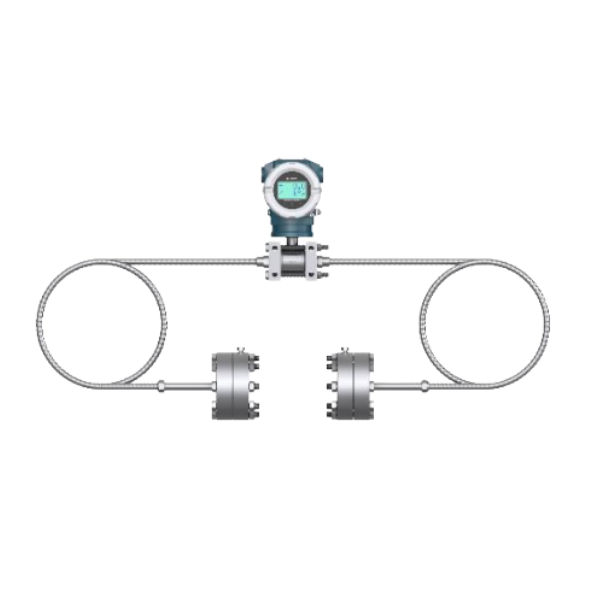

PS0A/0B Diaphragm Sealed Differential PressureTransmitter

The diaphragm seals of the differential pressure remote transmitter is used to prevent the medium in the pipeline from directly entering the pressure-sensing assembly of the differential pressure transmitter. The pressure is transmitted between it and the transmitter using a filling liquid such as silicone oil. PS0A/0B diaphragm sealed differential pressure transmitter is used to measure the pressure of liquid, gas or steam, and then convert it into a 4~20mADC HART current signal output. This series of products supports HART and 485-Modbus communication protocols.

Pressure Type : Diaphragm Sealed Flanged Mount/Diaphragm Sealed
Threaded Mount
Pressure Range : 0-3MPa
Range Ratio : None
Accuracy : 0.2 %
Long-term Stability : None
Output Signal : 4-20mA , HART communication/485 – Modbus communication (optional)
