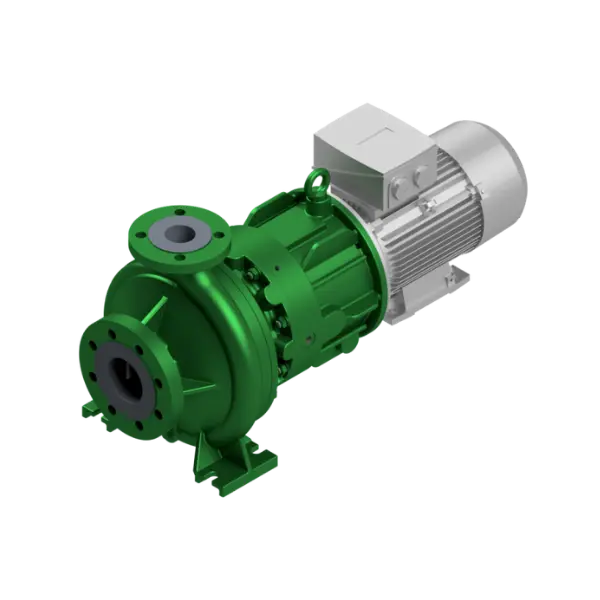

Model NMB

Model : NMB
Chemical standard pump with casing dimensions according to ISO 2858 with magnetic coupling.

The containment shell hermetically seals the conveying medium to the outside, and the hereby arrising eddy currents are dissipated by the internal circulation. The generously dimensioned shaft bearing, which is in contact with the medium, is mounted in SiC sleeve bearings and is therefore maintenance- and wear-free. Complete thrust load balance is guaranteed over the entire performance curve range by the installed hydraulics. Due to the directly flange-mounted standard motor, the usual coupling alignment is not required for NMB pumps. A wide range of variants and monitoring options enables an individual solution for the operator.

Features

• Q max: 300 m³/h [1320 g.p.m.]**
• H max: 250 m [820 ft]**
• operating pressure: 16/24/40 bar [232/348/580 psi]*
• temperature: 200° C [390° F]*
• max rotational speed: 3500 rpm
• gasket/mechanical seal: magnetic coupling
• installation: horizontal
• self-priming: no
• bearing: rolling bearing, product side plain bearing
• lubrication: Grease
• materials: duplex, Ni-based, spheroidal graphite iron / cast steel, austenitic steel
• standards: DIN EN ISO 2858, ISO 15783
• explosion protection: category 2 / zone 1
